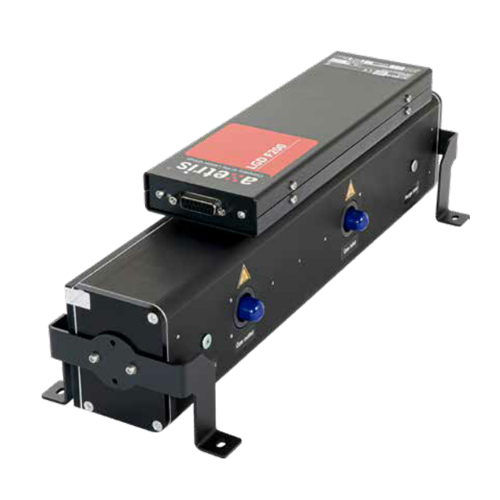

LGD Laser Gas Detection
The LGD F200 series is based on a contactless, near-infrared absorption measurement
of the target gas. The systems are self-contained, ready-to-use OEM modules, using a
flowthrough cell set-up for extractive measurements. The slightly bigger LGD F200 (H)
version features optional cell heating up to 220°C for hot gas measurements in process
control and environmental compliance related applications.
본문
Key features
* Made for easy integration by OEMs
* Optical, contact-less measurement
* Accurate laser-diode electro-optics
* High selectivity
* Fast response
* Self-contained
* Continuous sensor status monitoring
* Low maintenance
* Low cost-of-ownership
* 10-30V power supply
* Digital and analog data interfaces
* Hot-gas measurement up to 170/190/220°C
Applications
* Process control:SCR, incineration & combustion processes, …
* Emission monitoring: Power generation, engine development, waste incineration furnaces, …
* Environmental monitoring: Landfill & green-house gases, livestock, ...
* Chemical engineering:Production control & monitoring …
* Safety:Leak detection, refrigeration, toxic gases, …
* Climate control & monitoring:Livestock, climate chambers & rooms, ...
첨부파일
-
General Catalogue LGD.pdf (1.5M)
0회 다운로드 | DATE : 2024-10-15 12:49:08 -
LGD F200P2-H.pdf (992.3K)
0회 다운로드 | DATE : 2024-10-15 12:49:08
