Capacitor Charging Power Supplies
The High-Voltage Power Supply is a highly regulated power supply.
The supply provides high voltage and has electron-beam emitter, filament power
and closed-loop emission current control if used as an E-Gun power supply.
High-frequency power conversion technology is used for all power supply functions.
The unit is designed to run continuously at full output.
본문
* The high-voltage output of the supply is single-ended, and can be varied from near 0 to negative 150 kV.
* Maximum emission current is 58.0 mA at full output voltage.
* Emission current regulation is achieved through control of emitter’s filament current.
* Maximum filament current is 18 A into a 1 ohm load.

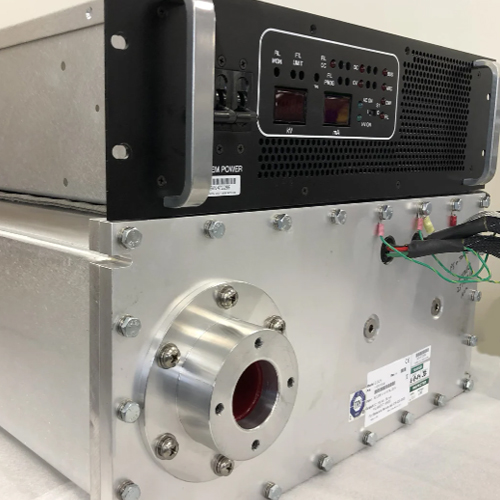

* The power supply is comprised of a Converter Assembly and a High Voltage Tank Assembly.
* The High-Voltage Tank Assembly is filled with oil for purposes of electrical insulation and cooling.
* Control of the power supply is performed by 15 V or 24 V interface signals supplied by the customer.
* Extensive internal interlocks and diagnostics are incorporated to provide reliable and safe operation, as well as to facilitate installation.
