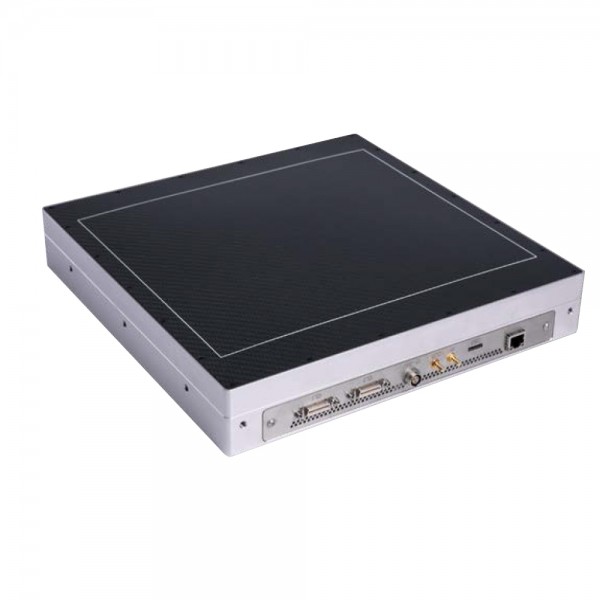

The 2824HR is a dynamic X-ray detector designed specifically for industrial NDT, pathology and other CTapplications such as X-ray diffraction, with a pixel pitch of 50 μm and

high-resolution CsI or Gadox scintillator.

This detector employs a state-of-the-art high-resolution CMOS sensor with 14-bit digital outputs and two gain modes offering a high dynamic mode or a high sensitivity mode

ideal for low dose, real-time imaging.

​Key Features

• Active area (mm) : 280.3 x 240.1

• Image Resolution : 5606 x 4802

• Frame Rate (fps) : 22(10GigE)/12(CL)

• DR (LFW/HFW) : 70/74

• Max Energy (kV) : 225

• Dimensions (mm) : 315.0 × 316.5 × 53.0

• Interface : CL, 10GigE, USB

Applications

• AXI ELECTRONICS INSPECTION

• SCIENTIFIC

• INLINE EV BATTERY INSPECTION
