X-Ray Detector System
* Fast, low noise imaging with minimal image lag
* CMOS sensor bonded to fibre optic plate (FOP)
* High Sensitivity and High Dynamic Range modes
* High speed, flexible region of interest
* Choice of high resolution / high sensitivity CsI scintillator
* Spectrum Logic provides a Windows SDK for rapid design-in
본문

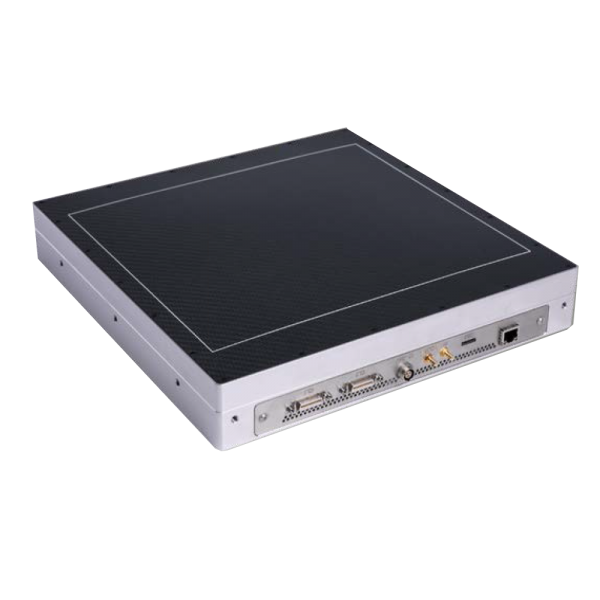

The 2824HS is a dynamic X-ray detector designed for industrial NDT, pre-clinical and clinical applications, with a pixel pitch of 100 μm and a choice of high-efficiency,
high-resolution CsI or Gadox scintillator.
It is ideal for CBCT or fluoroscopy.
The innovative sensor design enables a frame rate of up to 90 fps in full resolution and higher speeds in region of interest or binned modes.
Key Features
• Active area (mm) : 309.5 x 307.3
• Image Resolution : 3095 x 3073
• Frame Rate (fps)1x1 : 30(5GigE)/60(10GigE)
• Frame Rate (fps)2x2 : 84
• Max Energy (kV) : 160
• Interface : 10GigE, CL, USB
Applications
• AXI ELECTRONICS INSPECTION
• INLINE EV BATTERY INSPECTION
첨부파일
-
SL 2824HS.pdf (468.8K)
0회 다운로드 | DATE : 2024-10-18 11:09:00
