UV LED Photolithography
UV LED Direct Imaging

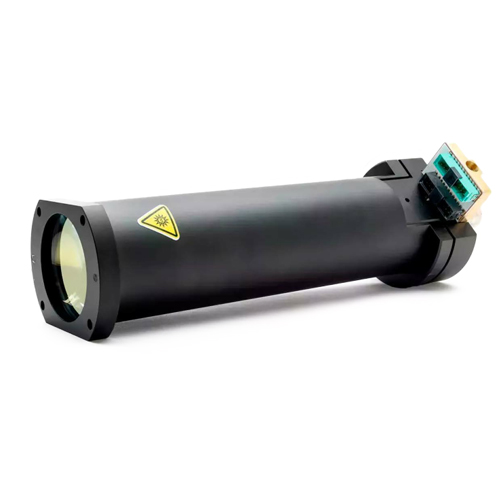

The LumiDL™ is among the most powerful DMD illuminators on the market.
Its UV radiation output is so high that the illuminator’s LED module requires
sophisticated liquid cooling, as does the DLP® chipset.
본문
A DMD projection system using the LumiDL™ UV-LED Illuminator is typically an optical setup comprising a TIR prism, a suitable DLP® chipset, and a projection lens.
While 3D and CtS printing setups usually work with a single exposure unit, HVM direct imaging tools combine several illuminators in parallel for increased throughput.
첨부파일
-
PGL-06-00101-C-LumiDL-DMD-Illuminator-Handout-EN 1.pdf (693.1K)
0회 다운로드 | DATE : 2024-10-17 15:22:42
