Micro Optics

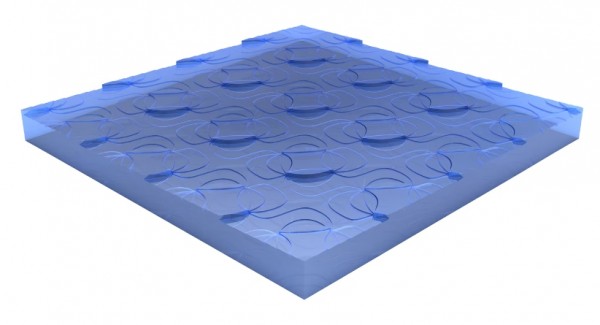

Diffractive Optical Elements (DOE)
* Binary and multi-level DOEs
* Phase and amplitude DOEs
* Transmissive and reflective DOEs
* Controlled zeroth order
본문
MATERIAL
* Fused silica; Others on request; Silicon
SURFACE ROUGHNESS
* Typ. < 2 nm RMS, max. 5 nm RMS
SURFACE FINISH/DEFECTS
* Custom based on ISO 10110
ANTI-REFLECTION COATING
* Against air or adhesive; Narrow or broadband; Others on request
PACKAGE FORM
* Bluetape; Gelpak; Known good die; UV Tape
NUMBER OF LEVELS
* 2 - 16
ADDITIONAL DESCRIPTION
* Alignment and mechanical structures; glue-stop; metallization; front- and/or backside
