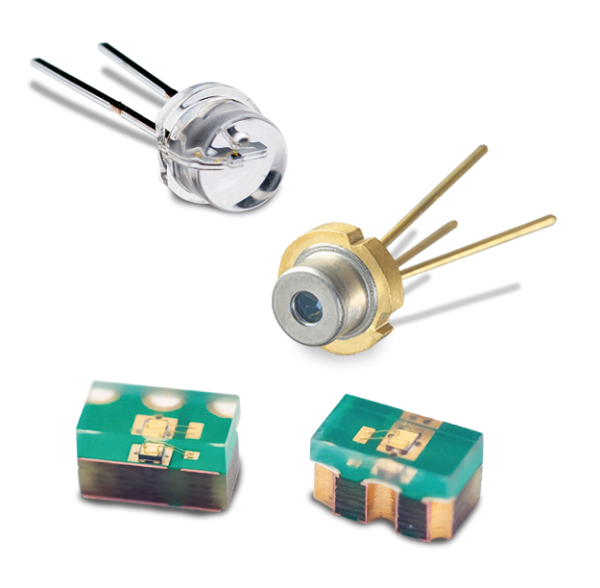

We offers two types of laser diodes

   (1) Pulsed Laser Diodes

   (2) High Energy Laser Diode

A wavelength is possible from 850nm and 1550 nm(850nm,905nm,980nm,1060nm,1550nm)

905nm Pulsed Laser DiodesVapor Phase Epitaxial (VPE) and using MOCVD grow techniques.

Various packages and fiber optics are available according to customer specifications.

980nm High Energy Laser Diodes - Quasi CW Lasers

These products have been specifically designed to meet the requirements of laser initiated ordnance (LIO) applications.

The product includes a 9.0 mm TO-style package and an 8-pin miniDIL.

The Pigtailed package is equipped with a rear monitor photodiode and 100/140 um optical fiber.

The 980 nm laser chip offers advanced epitaxial materials and stable, high optical power output capability

at elevated temperatures and significant power retention use process technology

Additional package outlines and fiber optic core diameters are considered according to customer specifications.

Application

* Laser range finding

* Weapon simulation

* Infrared night illumination

* Laser speed measurement (LIDAR)

* Automotive adaptive cruise control (ACC)

* Material excitation in medical and other analytical applications

* Weapon simulation
