Oxygen O2 Sensor

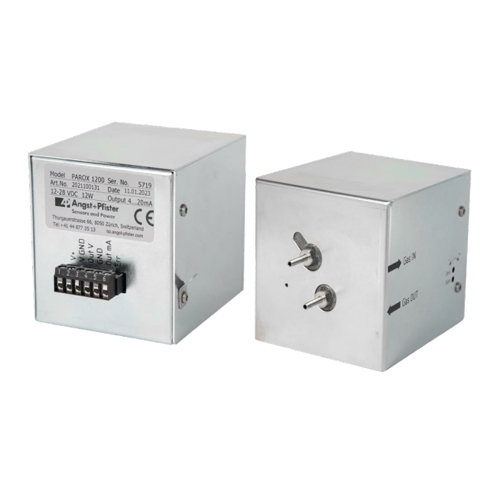

The PAROX 1200 oxygen sensor module is designed for integration into an analyser system or for use with microprocessor- or PLC-based systems.
or PLC-based systems to solve oxygen measurement problems.
The sensor modules are maintenance-free, have a long life, provide a fast and accurate signal response, and are
are virtually insensitive to other gases.
They meet high quality standards and have a compact design that is easy to implement.
본문
technical specifications
- Standard measuring range: 0 - 25% O2, 0 - 100% O2, other ranges on request
- Output value standard: 4 - 20 mA (galvanically isolated)
- Optional output values: 0 - 1 V, 0 - 4 V (galvanically isolated)
APPLICATIONS
- Excess oxygen analysis in all types of combustion systems
- Indoor air monitoring for personnel and product safety
- Monitoring of oxygen content in fermentation vessels, biochemical fermenters and sewage gas
- Monitoring the atmosphere in fruit shops and greenhouses
- Process analyses for continuous monitoring of required and permissible oxygen content
- Low temperature and flue gas monitoring
- Automotive exhaust and internal combustion engine monitoring
- Blanket gas monitoring
- Tunnel and duct air quality monitoring
- Excess oxygen analysis in controlled atmospheres for systems or packaging in the food industry
- Biological and waste gas content monitoring
- Excess oxygen monitoring in processes
첨부파일
-
Paramagnetic O2 sensor_PAROX1200.pdf (601.0K)
0회 다운로드 | DATE : 2024-10-17 17:27:36
