LED Light Sources

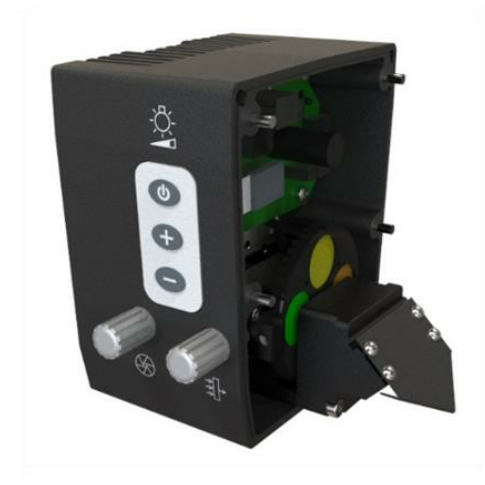

Microscope Light Module
Rayfine's Microscope Light Module boasts high brightness with a uniform lighting pattern.
본문
KEY PARAMETERS
• Ra>85 ➢ CCT=5500±500K
• Target plane: 250mm from objective lens
• Diameter of light pattern: 30mm ~ 95mm, 8 steps
• Max illuminance≥60000 lux @ 250mm, Φ 95mm
APPLICATION FEATURES
• High brightness with uniform light pattern
• With white light and three-color filters
• Thin film control with dimming and On/Off key
• Comply with EMC requirements
• Applied for microscope
[이 게시물은 최고관리자님에 의해 2024-10-18 16:33:56 LIGHT SOURCE에서 복사 됨]
첨부파일
-
RFMM-2607 Data Sheet_A_V3.pdf (574.3K)
0회 다운로드 | DATE : 2024-10-15 16:40:17
