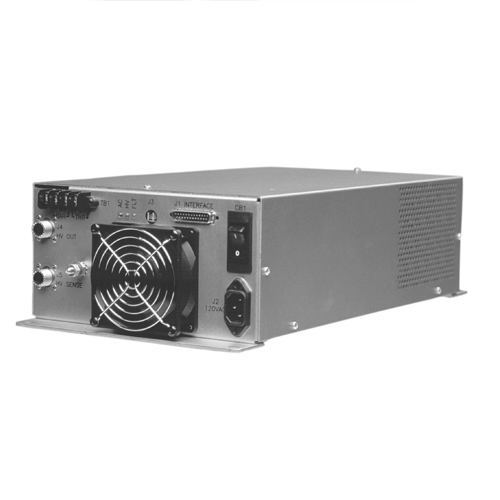

25kV, 250W High-Voltage DC Power Supply
The -25 kV, 10 mA 250 Watt power supply incorporates a high frequency quasi-resonant
switch-mode design utilizing an IGBT based power inverter with a completely air insulated
high voltage section. The fault tolerant design of this system offers open and short circuit
protection. Low stored energy, a benefit of the high frequency switching design, provides
fast response to transients and enhanced protection for the load and equipment operators.
본문
* Output voltage Accuracy: < 1% (250v) of 22kV with 10V program
* Load Regulation: > 2% of 25kV, from no load to full load
* Conversion efficiency: > 80%
* Protection: Over Temp, Over and under voltage, arc detection, short circuit protection
