X-Ray Detector System
* Fast, low noise imaging with minimal image lag
* CMOS sensor bonded to fibre optic plate (FOP)
* High Sensitivity and High Dynamic Range modes
* High speed, flexible region of interest
* Spectrum Logic provides a Windows SDK for rapid design-in
본문

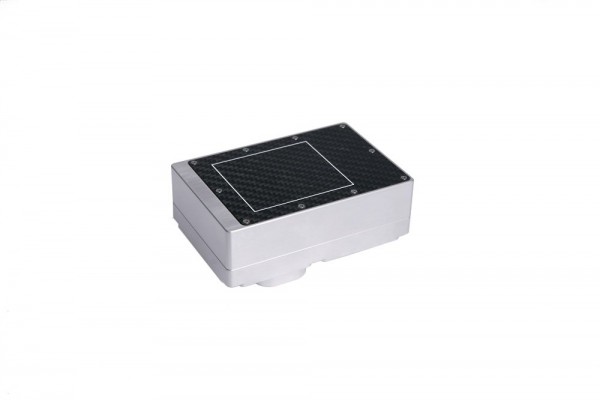

The 0606HR is a dynamic X-ray detector designed for industrial NDT, electronics inspection and pre-clinical applications, with a pixel pitch of 50 μm and a choice of
high-resolution CsI or Gadox scintillator.
It is ideal for CBCT and real-time inspection.
Innovative sensor design enables a frame rate of up to 59 fps with USB 3.0 and 40 fps with the GigE interface.
Key Features
• Active area (mm) : 60 x 53.5
• Image Resolution : 1200 x 1072
• Frame Rate (fps) : 59
• DR (LFW/HFW) : 70/74
• Max Energy (kV) : 225
• Dimensions (mm) : 115 x 77 x 37.8
• Interface : GigE, USB
Applications
• NDT: PIPE WELD INSPECTION
