Solidtron Thyristors

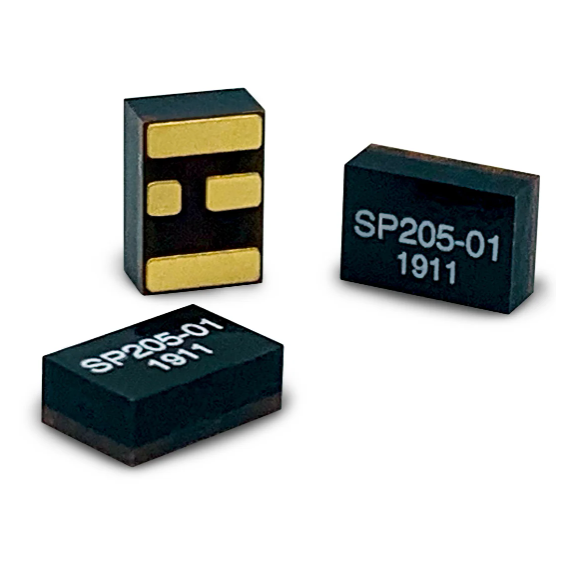

The Solidtron™ SP205-01 is an ultra-fast high-voltage thyristor packaged in
an F-Pak custom SMT package. The SP205-01T is identical to the SP205-01
with the exception that its pads have been robotically tinned with 63Sn-37Pb
solder prior to final testing.As with all Solidtron™ products, the core
semiconductor employs high cell density and an advanced termination design
to achieve high peak current capability, low turn-on & conduction loss,
very low off-state leakage, negligible turn-on delay jitter, and extremely high
turn-on dI/dt capability.
본문
KEY FEATURES
• 1500V Repetitive Off-State Voltage
• Off-State Leakage Current ≤1.0µA @ 1500V @ 85 o C
• VGK = 0V = OFF-STATE
• 120 kA/µs dI/dt capability
• Low Turn-on and Conduction Losses
• 3kA Repetitive Surge Current
APPLICATIONS
• LEEFI detonators
• Electronic Safe and Arm Devices
• Ignition Safety Devices
• Firing Modules
• Capacitor Discharge Units
첨부파일
-
Solidtron_SP205-01_SP205-01T__Fpak_Datasheet.pdf (368.8K)
