Oxygen O2 Sensor
O2 Gas Sensor(Paramagnetic)

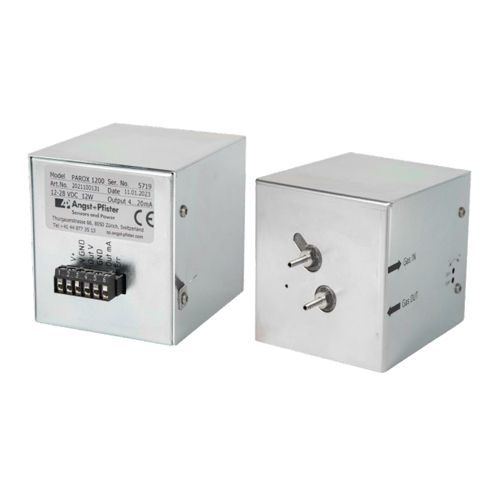

The PAROX 1200 paramagnetic oxygen sensor module is designed for incorporation
in your analyzersystems or for the solution of oxygen measuring problems using
a microprocessor or a PLC-based system.
The sensor module is maintenance-free, have a long lifetime, give a rapid and
accurate signal response and is virtually insensitive to other gases.
It has a compact design which meets high quality standards and easy implementation.
본문
TECHNICAL SPECCIFICATIONS
• Standard measuring ranges : 0 - 25% O 2, 0 ‐ 100% O 2, other ranges on request
• Output value standard : 4 ‐ 20 mA (galvanic isolated)
• Output value (option) : 0 ‐1V, 0 ‐ 4V (galvanic isolated)
APPLICATIONS
• Excess oxygen analysis in all types of combustion systems
• Room air monitoring for personnel and product safety
• Monitoring oxygen content in fermentation vessels, biochemical fermenters and sewer gases
• Monitoring atmosphere in fruit stores and hot-houses
• Process analysis for continuous monitoring of required and/or allowable oxygen content
• Monitoring of low-temperature and combustion gases
• Monitoring automotive exhaust and internal combustion engines • Monitoring blanket gases
• Monitoring tunnel and duct air quality
• Excess oxygen analysis in controlled atmospheres for systems or packaging in food industry
• Monitoring biological and waste gas content
• Excess oxygen monitoring in processes
첨부파일
-
Paramagnetic O2 sensor_PAROX1200.pdf (601.0K)
0회 다운로드 | DATE : 2024-10-15 13:25:37
