LED Light Sources
The latest generation of LED and LD technology are applied with our RFFM & RFPL series to
provide high quality cold light source for all kinds of medical endoscopes.

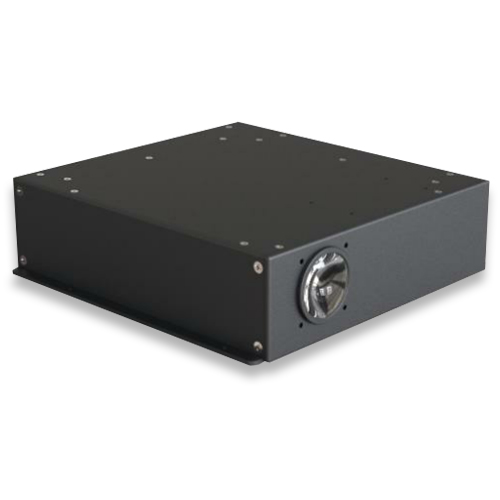

We can supply white LED fiber optic light module, narrow band imaging (NBI) light module,
fluorescent imaging (ICG-NIR) light module, portable light module and so on.
본문
KEY PARAMETERS
• White Light+415nm+540nm+785nm
• White Ra≥90
• White light CCT=5500±500K
• Back focus length is 25.6mm
• Luminous flux of white light LED is 2,300lm
• Output power of 415nm LED is 1,800mW
• Output lumen of 540nm LED is 280lm
• Output of 785 nm LD is 3,500 mW
APPLICATION FEATURES
• With aspheric glass lens, higher flux output and compact size
• White+NBI+NIR-ICG application
• Pass EMC test
• RS232 communication interface
• 11 output mode options
첨부파일
-
RFFM16A6_Datasheet_V1_13Apr20.pdf (531.6K)
0회 다운로드 | DATE : 2024-10-15 16:24:52
