High-Voltage Power Supplies

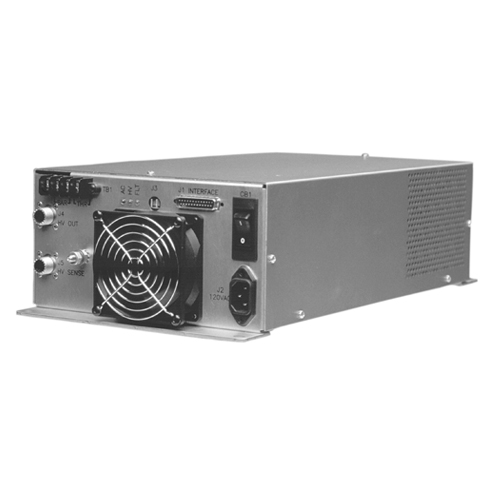

The XRSE High-Voltage Power Supply is a highly regulated power supply designed
for use in an X-ray system. The supply provides high voltage for the X-ray tube,
filament power and closed-loop emission current control. The unit is designed to
run continuously at full output. High-frequency power conversion technology is
used for all power supply functions. Extensive internal interlocks and diagnostics
are incorporated to provide reliable and safe operation. Excelitas also designs and
manufacturers complete X-ray sources under the Omniblock® brand,
containing the X-ray tube, power supply and integrated cooling system.
본문
* Many protective and safety features such as over voltage, over current, interlocks, over temperature and other features provide safe reliable operations.
* Emission current regulation is achieved through control of X-ray tube filament current.
* Available filament current is greater than 5 A into a 1 ohm load.
* Maximum emission current is 25.0 mA at full output voltage and 50 mA at -60 kV or less.
* The output power is limited by a regulating loop which limits the output power to a user defined amount up to 4.0 kW maximum
* Control of the power supply is performed by 12 V or 15 V interface signals supplied by the customer.
