High-Voltage Power Supplies

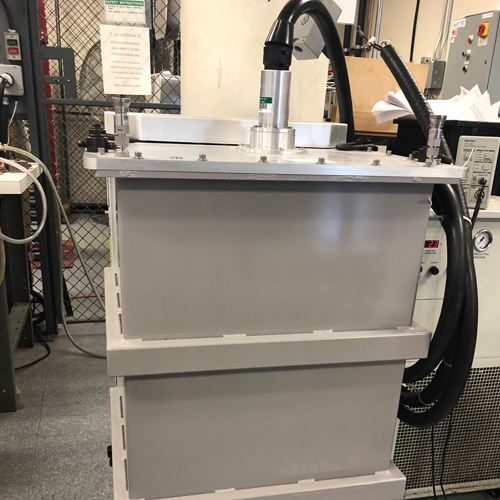

Excelitas' -150 kV, 100 mA E-Beam HVPS power supply with integrated
AC Filament Driver of 25 Vac, 50 Hz, <20 Arms and Grid Driver of -30 - +170 Vdc,
200 mA. Grid Driver power supplies are negative highly regulated power supplies
designed for use in E-Beam systems, capable of producing 0 to -150 kVdc, 100 mA of
DC power. The power supplies is designed to run continuously at full output power.
본문
* Integrated AC Filament Power Supply is capable of producing 0 to 25 Vac, 20 Aac at 50 Hz.
* Integrated DC Grid Power Supply is capable of producing -30 Vdc to +170 Vdc, 200 mA.
* The power supplies are comprised of water cooled oil filed tank and power electronics box and no external air cooling.
* High frequency power conversion technology is used for all power supply functions.
* Extensive internal interlocks and diagnostics are incorporated to provide reliable and safe operation, as well as to facilitate installation and troubleshooting.
* Control of the power supplies is performed through analog interface terminal blocks located on the internal control board under protection cover.
