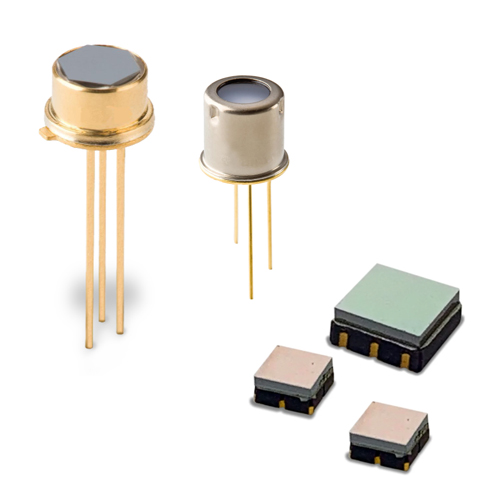

Thermopile Detectors and Sensors
Among Thermal Infrared (IR) detectors, our Thermopile Sensors are enabling many leading-edge non-contact temperature measurement applications including smart home and smart appliances, intelligent thermostats and HVAC control systems, and ear and forehead thermometers.
Thermopile Sensors include electronic circuitry to provide calibration, or just digital output. The line of SMD Thermopiles (surface mount device) offer you significant space efficiency and streamlined integration.
TPMI has become an industry-wide established Excelitas’ functionality. The integrated circuit provides the algorithm and calibration for temperature measurement.
Excelitas DigiPile® was the first digital output Thermopile Sensor enabling direct connection to your microprocessor and streamlining integration. The DigiPile line of Thermal IR Detectors are designed specifically for non-contact temperature measurement and are available in traditional TO metal housings, as well as in SMD (Surface Mount Device).
Applications
* Body temperature measurement
* Manufacturing process temperature control
* Fever detection monitoring
* Heating system efficiency management
본문
| TPiS 1S 1051, TPiS 1S 1252 DigiPile Sensor SMD Housed in a compact SMD carrier with optical window, the Excelitas TPiS 1S 1051 / 1252 DigiPile Sensor Series features Thermopile sensing chips connected to an internal ADC to provide amplification and digital conversion. This SMD DigiPile™ delivers a Thermopile sensor with digital 17-bit output. Similar to other Excelitas Thermopiles, this detector features our patented ISOthermal design to maximize performance. Within the bit stream the thermopile signal is followed by another signal given by an internal temperature reference diode. The digital output achieves low interference of electric disturbance to enable optimal performance across many applications and integrations. The TPiS 1S 1051 combines the smallest Thermopile chip with the smallest housing of any Excelitas Thermopile Sensor. The TPiS 1S 1252 model delivers higher sensitivity in a modestly larger housing with built-in thermopile chip. |
| TPiS 1T 1252B DigiPile Sensor Excelitas' TPiS 1T 1252B DigiPile Sensor features a Thermopile sensing chip connected to an internal ADC for amplification and digital conversion. This device engineered into a Special TO-46 type housing constriction with our patented ISOthermal design provides improved performance under thermal shock situation.
|
| TPiS 1T 1256 L5.5 DigiPile Sensor The Excelitas TPiS 1T 1256 L5.5 DigiPile Sensor features a Thermopile sensing chip connected to an internal ADC for amplification and digital conversion. All included in TO type housing with integral lens.
|
첨부파일
-
Excelitas_Thermal_Infrared_Sensing_Solutions_Catalog.pdf (4.8M)
0회 다운로드 | DATE : 2024-10-17 17:29:16 -
TPiS_1S_1051_DigiPile_SMD_Datasheet.pdf (256.6K)
0회 다운로드 | DATE : 2024-10-17 17:29:16 -
TPiS_1S_1252_DigiPile_SMD_Datasheet.pdf (273.0K)
0회 다운로드 | DATE : 2024-10-17 17:29:16 -
TPiS_1T_1252B_DigiPile_Datasheet.pdf (1.5M)
0회 다운로드 | DATE : 2024-10-17 17:29:16 -
TPiS_1T_1256_L5_5_DigiPile_Datasheet.pdf (439.4K)
0회 다운로드 | DATE : 2024-10-17 17:29:16
