X-Ray Detector System
* Fast, low noise imaging with minimal image lag
* CMOS sensor bonded to fibre optic plate (FOP) for radiation tolerance
* High Sensitivity and High Dynamic Range modes
* High speed, flexible region of interest
* Choice of high resolution / high sensitivity CsI scintillator
* Spectrum Logic provides a Windows SDK for rapid design-in
본문

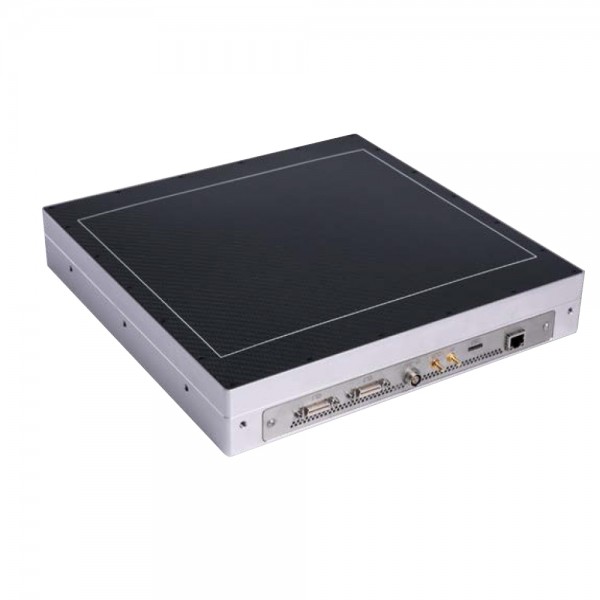

The 2824HR is a dynamic X-ray detector designed specifically for industrial NDT, pathology and other CTapplications such as X-ray diffraction, with a pixel pitch of 50 μm and
high-resolution CsI or Gadox scintillator.
This detector employs a state-of-the-art high-resolution CMOS sensor with 14-bit digital outputs and two gain modes offering a high dynamic mode or a high sensitivity mode
ideal for low dose, real-time imaging.
Key Features
• Active area (mm) : 280.3 x 240.1
• Image Resolution : 5606 x 4802
• Frame Rate (fps) : 22(10GigE)/12(CL)
• DR (LFW/HFW) : 70/74
• Max Energy (kV) : 225
• Dimensions (mm) : 315.0 × 316.5 × 53.0
• Interface : CL, 10GigE, USB
Applications
• AXI ELECTRONICS INSPECTION
• SCIENTIFIC
• INLINE EV BATTERY INSPECTION
첨부파일
-
SL 2824HR.pdf (263.7K)
