X-Ray Detector System
* Fast, low noise imaging with minimal image lag
* CMOS sensor bonded to fibre optic plate (FOP)
* High Sensitivity and High Dynamic Range modes
* High speed, flexible region of interest
* Choice of high resolution / high sensitivity CsI scintillator
* Spectrum Logic provides a Windows SDK for rapid design-in
본문

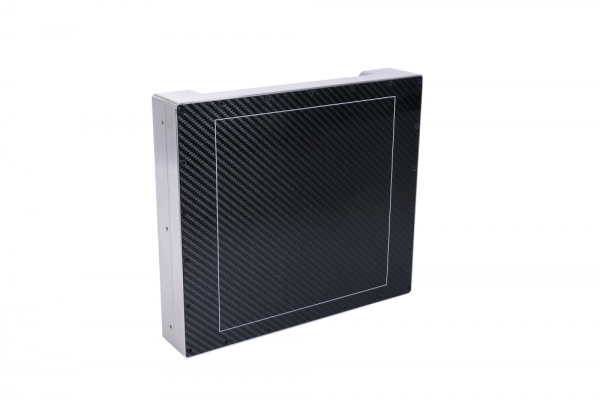

The 2121HS is a dynamic X-ray detector designed for industrial NDT, pre-clinical and clinical applications, with a pixel pitch of 100 μm and a choice of high-efficiency CsI or
Gadox scintillator.
It is ideal for CBCT or fluoroscopy.
Innovative sensor design enables a frame rate of 70 fps in full resolution, 84 fps binned 2 × 2 and higher speeds for a region of interest.
Key Features
• Active area (mm) : 204.9 x 206.3
• Image Resolution : 2049 x 2063
• Frame Rate (fps)1x1 : 70
• Frame Rate (fps)2x2 : 83
• Max Energy (kV) : 225
• Interface : 5GigE, USB
Applications
• MOBILE SURGICAL C-ARM
• SCIENTIFIC
첨부파일
-
SL 2121HS.pdf (263.3K)
0회 다운로드 | DATE : 2024-10-18 11:12:37
