X-Ray Detector System
* Fast, low noise imaging with minimal image lag
* CMOS sensor bonded to fibre optic plate (FOP)
* High Sensitivity and High Dynamic Range modes
* High speed, flexible region of interest
* Choice of high resolution / high sensitivity CsI scintillator
* Spectrum Logic provides a Windows SDK for rapid design-in
본문

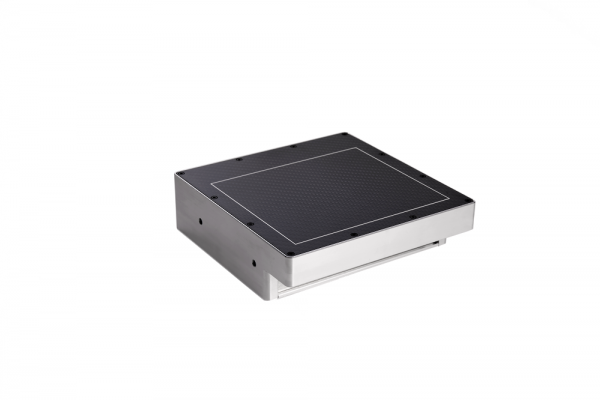

The 1412HR is a dynamic X-ray detector designed for electronics inspection, industrial NDT, pre-clinical and clinical applications, with a pixel pitch of 50 μm and a choice of
high-efficiency CsI or Gadox scintillator.
It is ideal for CBCT or fluoroscopy.
This detector employs a state-of-the-art CMOS sensor with 14-bit digital outputs and two gain modes offering a high dynamic mode or a high sensitivity mode ideal for low dose,
real-time imaging.
The sensor is permanently bonded to a fibre optic plate (FOP) to enhance image quality and make the device more radiation tolerant.
첨부파일
-
SL 1412HR.pdf (320.1K)
0회 다운로드 | DATE : 2024-10-21 09:46:59
