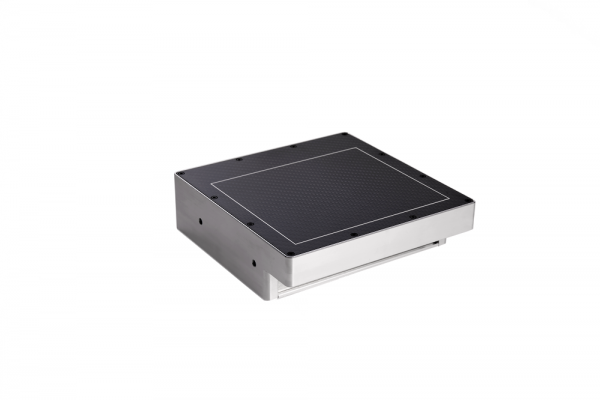

The 1206HR is a high-resolution dynamic X-ray detector designed specifically for pre-clinical, scientific and industrial applications, with a pixel pitch of 50 μm and high-resolution

CsI or Gadox scintillator.

This detector employs a state-of-the-art CMOS sensor with 14-bit digital outputs and two gain modes offering a high dynamic mode or a high sensitivity mode ideal for low dose,

real-time imaging. The sensor is permanently bonded to a fibre optic plate (FOP) to enhance image quality and make the device more radiation tolerant.

Key Features

• Active area (mm) : 119.6 x 60.0

• Image Resolution : 2392 x 1200

• Frame Rate (fps) : 59

• DR (LFW/HFW) : 70/74

• Max Energy (kV) : 225

• Dimensions (mm) : 171.5 x 171.5 x 49

• Interface : CL, 5GigE

Applications

• SCIENTIFIC​
