Omniblock X-ray Systems

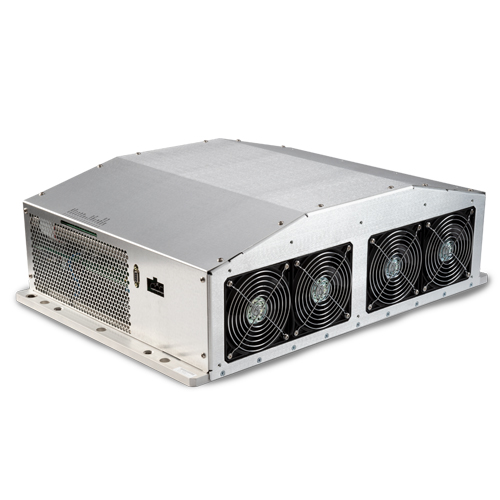

Low Power Omniblock® (160 kV @ ≤4 mA) with integrated glass X-ray tube.
This robust, complete X-Ray generator system is designed to withstand up to
20 G (rms) force in rotating gantry applications for security, food inspection,
medical and industrial non-destructive testing applications.
본문
* The Omni 160 kV 4 mA is the base building block used to create an OEM Omniblock platform specific to customer applications.
* Designed to operated continuously with maximum output power of 650 W at 160 kV and 4 mA
* Standard X-Ray nozzles produces conical beam minimum of 7 degrees.
* Modified beam angle nozzles can be developed if they are within parameters of the X-Ray Tube
* Protection and Safety circuitry for Over Current, Under Current, Over Voltage, Under Voltage, Arc Detection, X-Ray On and Temperature faults.
첨부파일
-
Omniblock_Data_Sheet.pdf (618.3K)
0회 다운로드 | DATE : 2024-10-18 10:07:26 -
Customization_X-Ray_Power_Supply_Worksheet 2.pdf (226.3K)
0회 다운로드 | DATE : 2024-10-18 10:07:26
